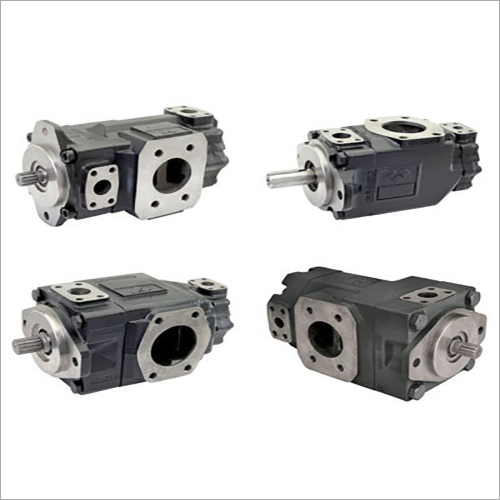

Hydraulic Axial Piston Pump

Hydraulic Axial Piston Pump
Hydraulic Axial Piston Pump
Send Inquiry
Product Code : VHDVP-17
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • 20000.00 - 40000.00 INR
Product Specifications
  • Material
  • Metal
  • Power
  • Electric
  • Fuel Type
  • Diesel
  • Pressure
  • High Pressure
  • Usage
  • Cosmetics, Paper Printer, Boat, Automobile, Food, Water Well, Oil Well, Air Pump, Water
Product Description

Hydraulic Axial Piston Pump



Hydraulic Double Vane Pumps Over the years, we are affianced in supplying and exporting an exclusive range of Hydraulic Axial Piston Pump Sourced from the trusted vendors of the market, the pumps are highly appreciated among clients due to their striking features like durability, easy installation and corrosion resistant surface. The offered range of pumps finds wide usage in hydraulic drive systems. Our offered pumps are a positive displacement pump and hydrodynamic or hydrostatic in nature. We are offering these Hydraulic Axial Piston Pump in the global market at cost effective prices.

Our customers can avail from us a wide range of hydraulic axial piston pumps. These pump are an ideal variable displacement pump, that consists of various pistons in a circular array within a cylinder block. Also, these pumps have the quality to be used in different forms like stand-alone pump, hydraulic motor or an automotive air conditioning compressor. The primary use of these pumps is to power earth moving plants and other machines. Moreover, these piston pumps are also used for controlling the flow and pressure in hydraulic systems.

Veljan Hydraulic Axial Piston Pump:

Model No.

Max Press

Displacement

Max Speed

psi

bar

in³/rev

cm³/rev

rpm

VT6CC

4000

275

 1.32 - 12.20

22 - 200

2800

VT6CCSH

4000

275

1.32 - 12.20

22 - 200

2800

VT6DC

4000

275

3.56 - 17.75

59 - 290

2500

VT6DDS

3500

240

5.80 - 23.3

96 - 380

2500

VT6EC

4000

275

8.73 - 22.56

143 - 370

2200

VT6ED

3500

240

11.0 - 28.06

180 - 460

2200

VT6EE/EES

3500

240

16.1 - 32.8

264 - 540

2200

VT6CCM

4000

275

1.32 - 12.20

22 - 200

2800

VT6CCZ

4000

275

1.32 - 12.20

22 - 200

2800

VT6GCC

4000

275

1.32 - 12.20

22 - 200

2800

VT6DCM

4000

275

3.56 - 17.75

59 - 290

2500

VT6ECM

4000

275

8.73 - 22.56

143 - 370

2200

VT6EDM

3500

240

11.0 - 28.06

180 - 460

2200

VT7BB/BBS

4650

320

0.67 - 6.10

12 - 100

3600

VT7QCC

4350

300

1.32 - 12.20

22 - 200

3000

VT7DB/DBS

4350

300

3.03 - 12.69

50 - 208

2500

VT7QDC

4350

300

3.34 - 15.74

55 - 258

2500

VT7DD/DDS

3600

250

5.36 - 19.28

88 - 316

2500

VT7EB/EBS

4350

300

8.42 - 19.45

138 - 319

2200

VT7QEC

4350

300

8.73 - 22.56

143 - 370

2200

VT7ED/EDS

3600

250

46302

176 - 427

2200

VT7EE/EES

3500

240

16.1 - 32.8

264 - 540

2200

VT67CB

4350

300

1.01 - 9.15

17 - 150

2800

VT67DB

4350

300

3.25 - 14.7

54 - 240

2500

VT67EB

4350

300

8.42 - 19.45

138 - 320

2200

NEW MODELS

VTXBB

3000

210

0.79 - 5.61

12 - 92

2500

VT6BB

3500

240

0.79 - 5.61

12 - 92

2500

VT6CB

4000

275

1.05 - 8.52

17 - 140

2500

VT67BB

4350

300

0.35 - 3.05

12 - 200

2800

VT67EC

4000

275

8.73 - 22.5

143 - 370

2200

VT67DC

4000

275

2.68 - 9.64

44 - 156

2200

VT6GDC

4000

275

0.66 - 11.65

-623919

2500

TECHNICAL SPECIFICATIONS:

SERIES


J9V009

J9V018

J9V027

J9V045

J9V072

J9V099

J9V135

Maximum pressure










psi

4060

4060

4060

4060

4060

4060

4060


Bar

280

280

280

280

280

280

280

Maximum Displacement










In/rev

0.55

1.10

1.65

2.74

4.40

6.10

8.54


Cm/rev

9

18

27

45

72

100

140

Maximum Speed

rpm

3600

3300

3000

2600

2200

2000

1800


Trade Information
  • Payment Terms
  • Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit (L/C), Delivery Point (DP), Days after Acceptance (DA), Cheque, Cash in Advance (CID), Cash Advance (CA), Cash on Delivery (COD), Cash Against Delivery (CAD)
  • Supply Ability
  • 100 Pieces Per Day
  • Delivery Time
  • 7-30 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
